Newbridge

Model: ND-APG2422

FEATURES:

• Maximum PoE power: 300W

• Support Max Transmission distance up to 250m with PoE Power

  Support A I self-healing mode（Watchdog function


• 24*10/100/1000Mbps PoE ports,

• 2*10/100/1000Mbps uplink port ，2*1000Mbps SFP Slot

• Support IEEE802.3af/at

• Support restrain network storm, VLAN function

• The toggle horse can be switched at will without power

• All port supported by MDI/MDIX auto flip and self-negotiation

• Built-in power supply;

• Maximum power of single PoE port: 30 W

• Maximum PoE power: 300W

• Adopts store-and-forward architecture

• Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall

• Support lightning protection 4kV

Newbridge®The  24-port   10/100/1000Mbps  AI   PoE  switch   provides  seamless  data  connectivity  for 10/100/1000Mbps Ethernet and PoE power for powered devices such as network surveillance cameras and wireless (AP).

The switch has 24* 10/100/1000Mbps PoE+ ports + 2* 100/1000Mbps uplink ports+ 2 Gigabit SFP ports, where 1-24 1000 Mbps downlink power ports all support powering PoE network cameras via UTP Category 5 and above unshielded twisted pair cables. 24 10/100/1000 Mbps adaptive RJ45 downlink ports all support 802.3af/at  standard   PoE  power  supply.       Support   priority  mechanism,  when  the   remaining   power  is insufficient,  the   power  supply  of  the   high   priority  port  is  guaranteed  first  to   avoid   overloading  the equipment. The  maximum  PoE  output  power  of  the  whole  machine  is  300W,  and  the  maximum  power supply power of individual ports is 30W.

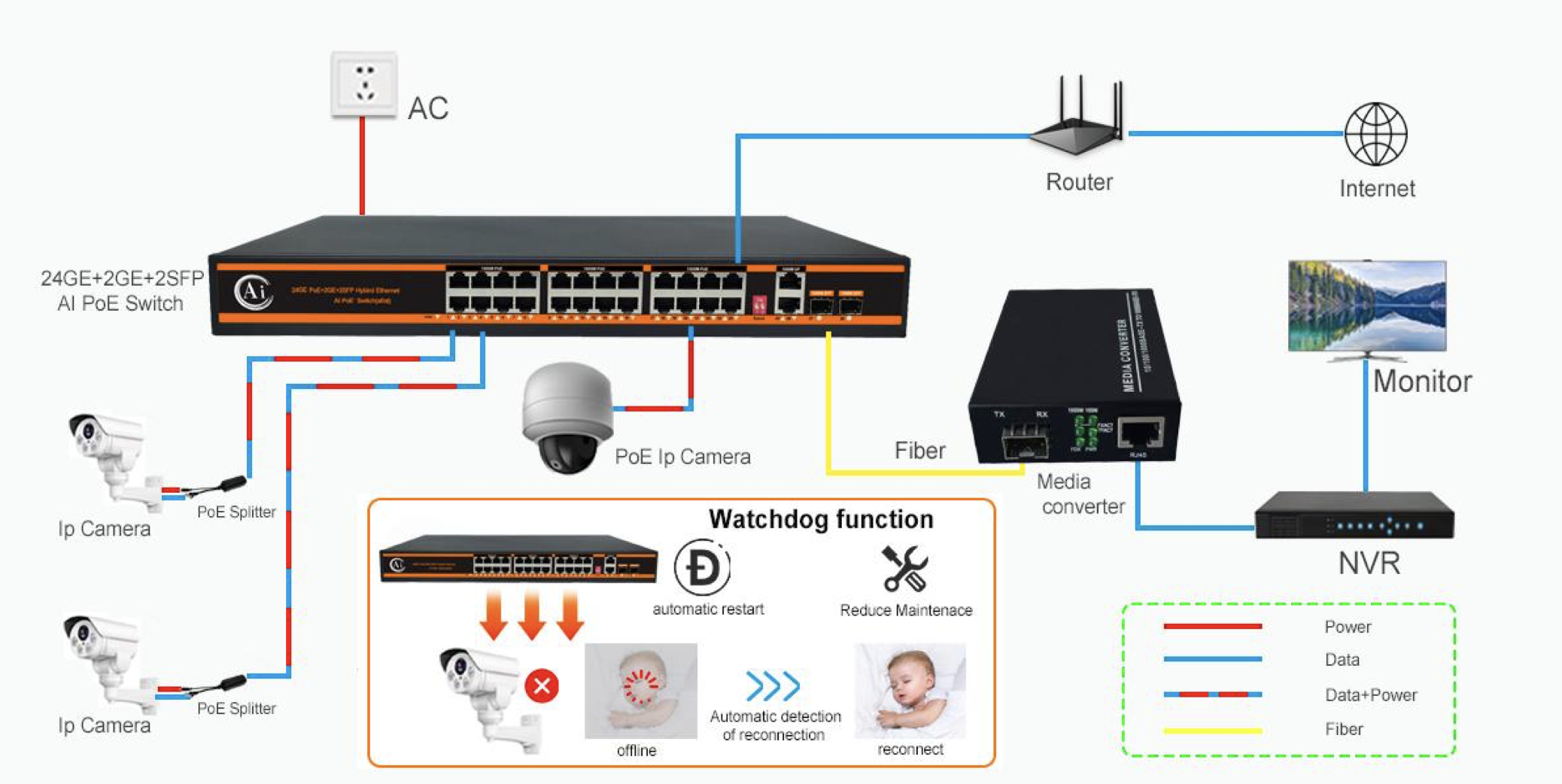

The 24 ports of Power over Ethernet can achieve A I self-healing function (watchdog function) by toggling any dial horse switch in the case of non-stop power, 250m long distance + VLAN isolation mode ，which automatically detects the data communication status in real time. When a port communication fault occurs, the corresponding port     restarts  automatically to  recover the network communication and avoid manual maintenance.The Value lies in help to build the AI intelligent security transmission ecosystem.

Users can easily  understand the working status of the device through the  power  indicator  and  status indicator of each port, plug-and-play, no configuration required, simple and convenient.
